51 Series Heavy-Duty Drawer Slide
51 mm three-section heavy-duty drawer slide for tool chests, mobile workstations and service vehicles — full extension with disconnect, 10 pairs per…
- Fit
- Commercial Vehicles
100–250 lbs
32–40"
Tool chests and storage systems run thousands of open-close cycles under partial loads with fine dust present. Ball-bearing smoothness, load rating per drawer and side stability of wide, shallow trays decide the hardware choice.
We supply tool-chest makers with matched detent forces across the range and batch-tested black finishes, so a production run feels identical drawer to drawer.
Typical load
100–500 lbs per pair
Environment
Garage and jobsite: impact, dirt, occasional moisture
What buyers review
The specifications and conditions checked before selecting a slide for this application.
Full extension with detent
Drawers must stay closed on wheels — confirm detent or push-open force.
Slam resistance
Job-site boxes take abuse; cycle-test with impact closing, not gentle pulls.
Progressive or self lock
Cabinet-on-casters needs the drawer held under motion.
Black finish durability
Powder or e-coat that survives key scuffs and solvent wipes.
Consistent dimensions
One cabinet series mixes 12"–40" drawers — envelopes must align.
Products for Tool Storage

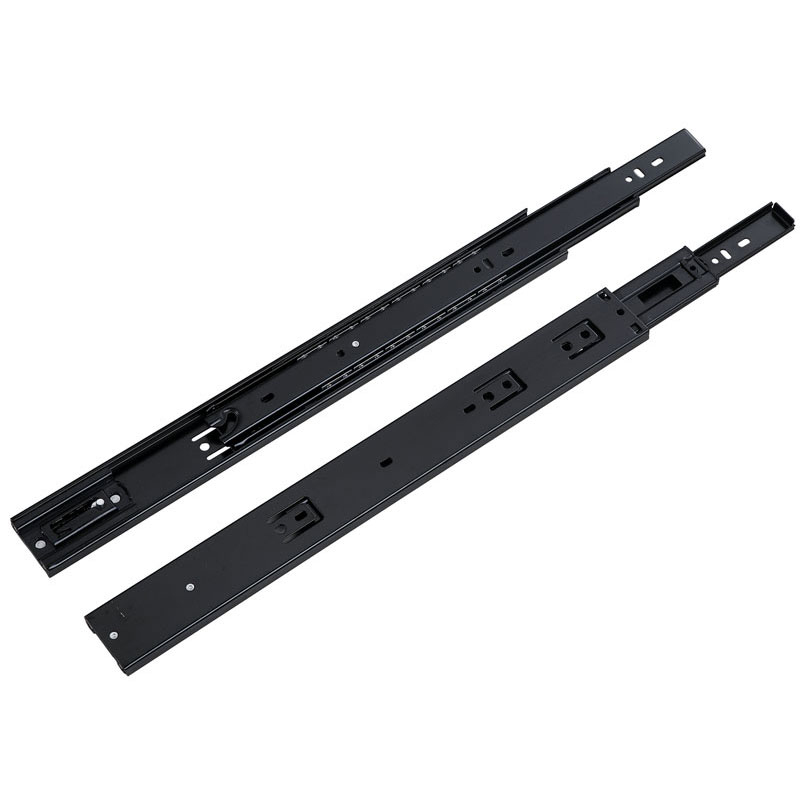

L1045 Full-Extension Three-Section Self-Lock Ball Bearing Slide
45 mm full-extension three-section ball bearing slide with mechanical self-lock, 15 pairs per carton (10" – 24").
- Fit
- Ball Bearing Slides
- Install
- Heavy-Duty Lock
Under 100 lbs
10–20"
Heavy-Duty Lock

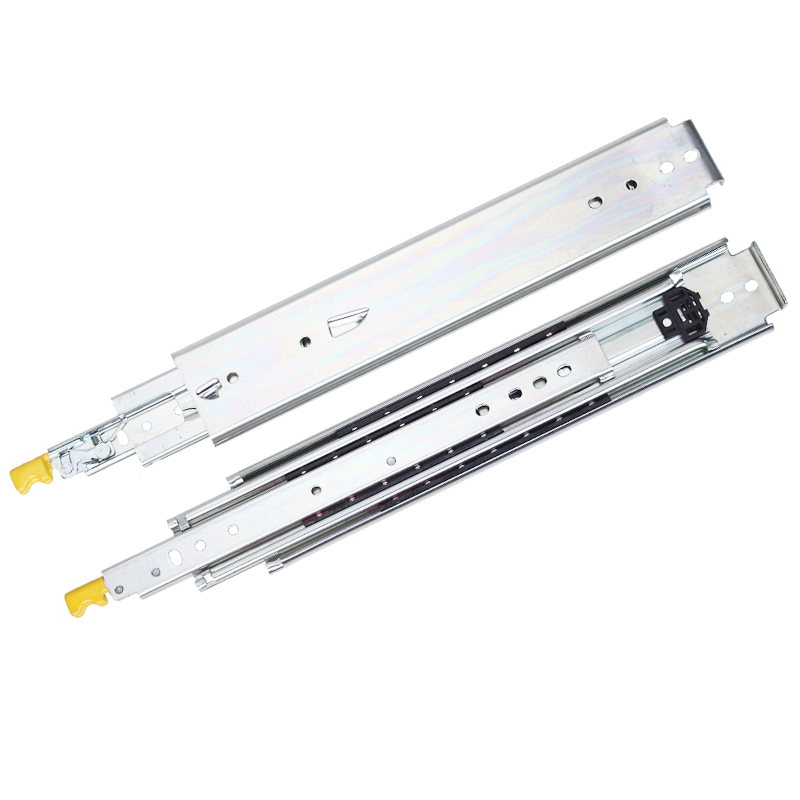

76 Series Heavy-Duty Drawer Slide
Heavy-duty 76 mm side-mount slide with lock-in/lock-out, rated 150 lbs per pair for tool chests, mobile workstations and service vehicles.
- Fit
- Commercial Vehicles
- Install
- Heavy-Duty Lock
100–250 lbs
32–40"
Heavy-Duty Lock
Undermount Concealed Soft-Close Runner
Hidden undermount runner with soft-close for premium furniture and dining tables.
- Fit
- Furniture
- Install
- Undermount
Under 100 lbs
10–20"
Soft-Close
- Concealed undermount
- Soft-close
- Full extension
OEM/ODM
53 Series Heavy-Duty Drawer Slide (5301)
Cold-rolled steel heavy-duty drawer slide rated 120 kg per pair, electroplated zinc finish, lengths 350-1200 mm (14-48 inch) for furniture and equipment…
- Fit
- Heavy Duty Slides
- Install
- Heavy-Duty Lock
100–250 lbs
32–40"
Heavy-Duty Lock
Related case studies
Heavy-Duty Slides for a US Tool Cabinet Maker
15
Days Lead Time
100
LBS per Pair
Locking Drawer Slides for Military Storage Cases
Locking heavy-duty slides for transport cases that must stay closed under shock and vibration.
96
-hour
18
lead time
Spec it for Tool Storage
Send the drawing and operating conditions — engineering confirms the right configuration within 24 hours.
